Digital Macro Microscope with Autofocus and Electric Controlled Continuous Zoom
- $1,880.00
- Integrated Digital Imaging System
Real-time viewing on a display for comfortable, eye-free operation and easy inspection. Supports direct HDMI output for PC-free operation.
- Electric Continuous Zoom
Smooth, motorized zoom across the full magnification range. No lens changes needed.
- Autofocus Function
Quick, precise focusing for consistently sharp images.
- Adjustable LED Illumination
Integrated LED lighting with adjustable brightness for optimal visibility under different working conditions.
- Large Working Distance
Ample space for tools, enabling efficient inspection, assembly, and repair without obstruction.
- 4K Output & Multi-Connectivity
Supports 4K@30FPS via HDMI, plus USB / LAN / WiFi for flexible viewing and sharing.
Available Options
Introduction

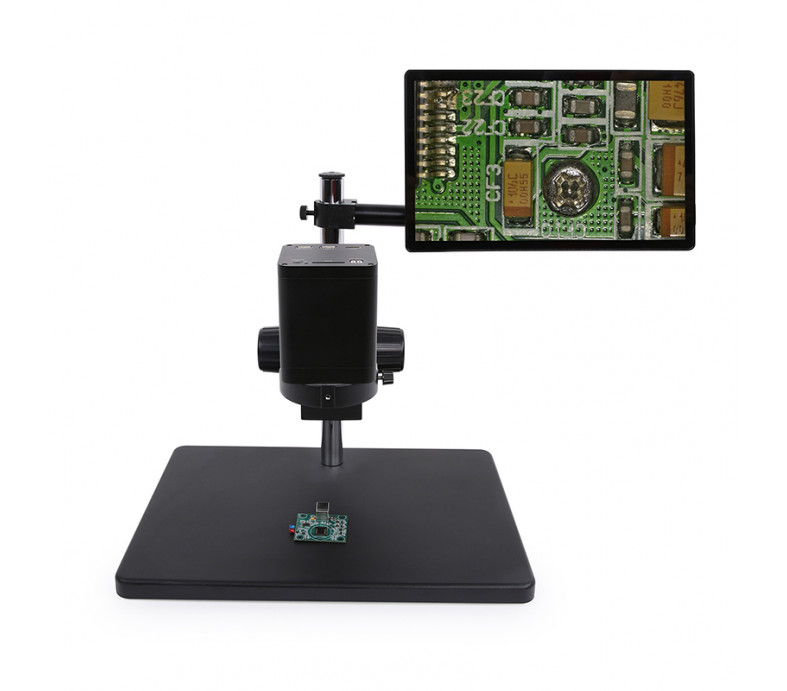

An all-in-one digital macro microscope with electric continuous zoom and autofocus, offering a large field of view for efficient inspection. It features an integrated HDMI camera, motorized zoom autofocus objective, and built-in LED illumination.
Powered by a high-performance Sony CMOS sensor and embedded ARM core, it supports both autofocus and manual focus, with direct HDMI output for PC-free operation. Built-in XFCAMView software allows easy control, measurement, and image stitching via USB mouse. Images and videos can be saved directly to an SD card.
Supports 4K@30FPS HDMI output, along with USB, LAN, and WiFi connectivity for flexible viewing and sharing.
Features
1. 5 groups 16 elements lens with 0.0218~0.392X, 18X zoom ratio, supports auto and manual focus
2. 250mm standard working distance with 205~255mm depth of field
3. At standard working distance, the large field of view 255mm*145mm at low magnification helps users to quickly locate the target object. The small field of view 14.2mm*8mm at higher magnification enables users to observe microscopically
4. Sony 1/2.8” 4K Starvis CMOS with high signal-to-noise ratio
5. 4K HDMI/USB/ETH/WiFi multiple video outputs
6. 4K/1080P auto switching according to monitor resolution
7. SD card/USB flash drive for captured image and video storage, support local preview and playback

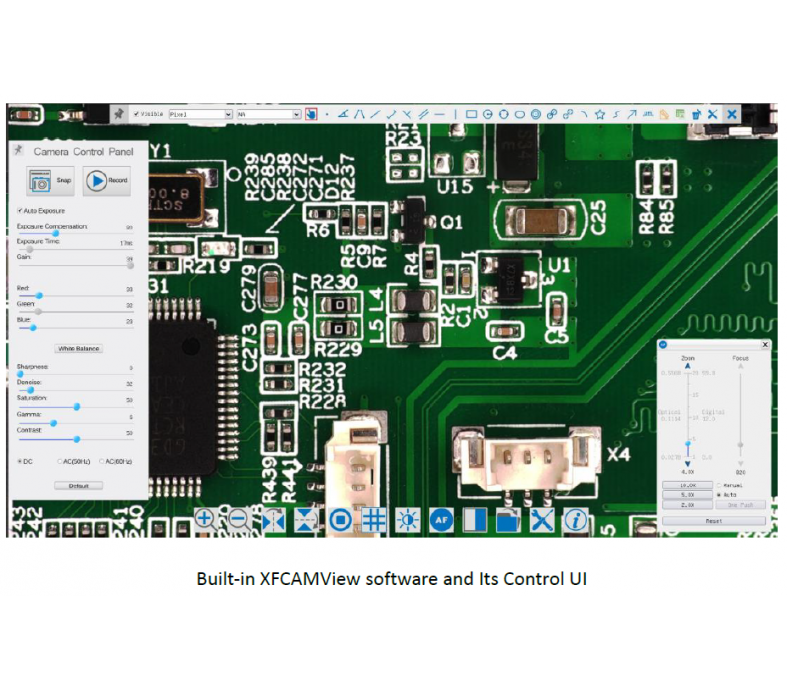

8. Built-in mouse control software XFCAMView, all functions can be realized with USB mouse
9. Embedded mouse Camera Control Panel, Measurement Toolbar, Synthesis Control Toolbar, AF Control Panel
10. Multi-language support

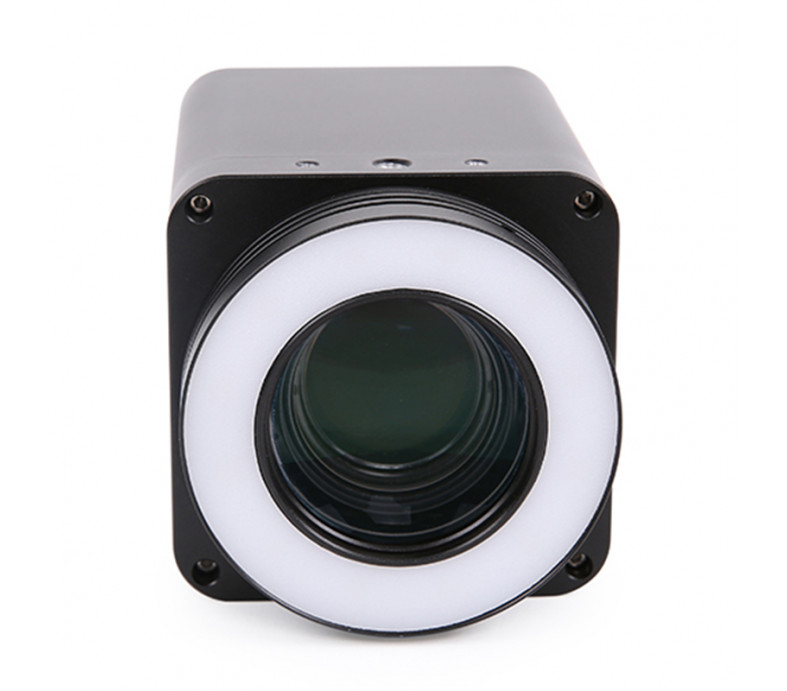

11. Head suction LED ring light. Brightness can be directly controlled by XFCAMView

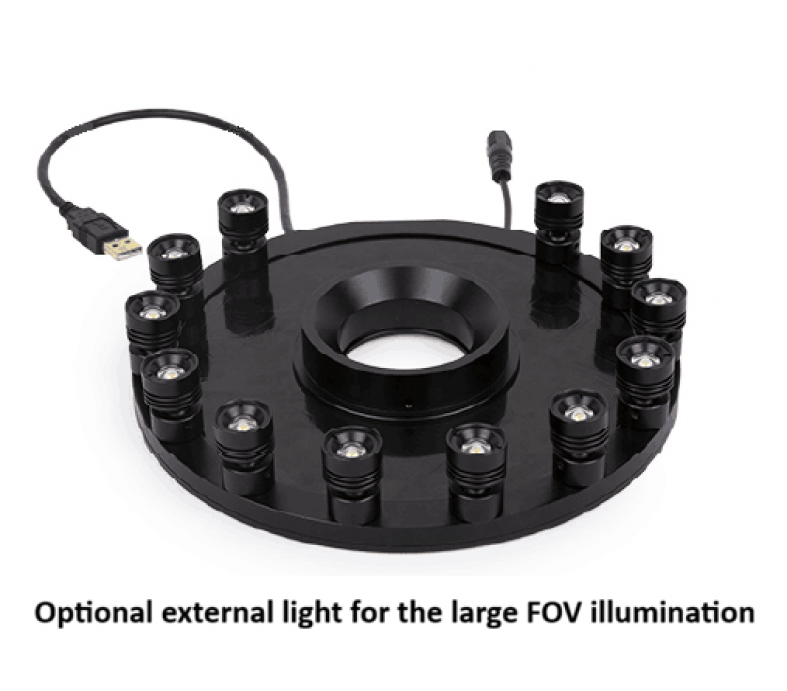

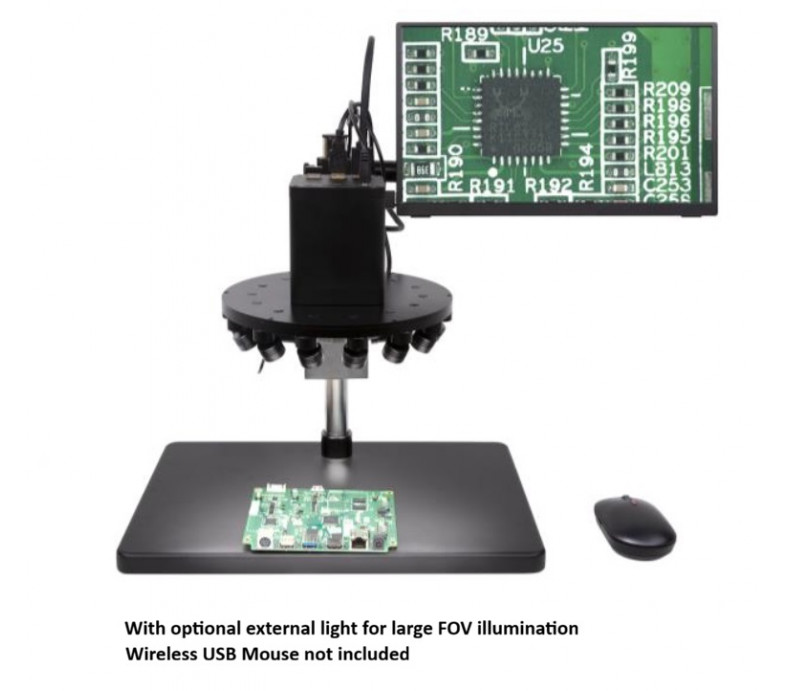

12. Optional external light can be added for the larger FOV illumination
13. Standard 13-inch 1080p screen, upgradeable to 13-inch 4K
Application
Widely used in industrial inspection, medical observation, teaching and scientific research, automation system, etc.
Camera Module Datasheet
|
Sensor & Size(mm) |
Pixel(μm) |
G Sensitivity/ Dark Signal |
FPS/Resolution |
Binning |
Exposure(ms) |
|
Sony IMX415LQR-C |
1.45×1.45 |
300mv/0.13 with 1/30s |
30@3840*2160(HDMI) |
1×1 |
0.04~1000 |
Lens Module Datasheet
|
Working Distance(mm) |
Zoom Range |
MTF(lp/mm) |
Distortion |
FOV@1X(mm) |
FOV@20X(mm) |
|
205~255 |
0.021X~0.39X |
160 |
0.5% |
255×145 |
14.2×8 |
Light Module
|
LED |
Power |
Inner Dia.(mm) |
Out Dia.(mm) |
|
8 CREE xpes |
3V/3A |
50 |
76 |
Adjustable brightness. Optional external light for larger FOV illumination.
Camera Specification

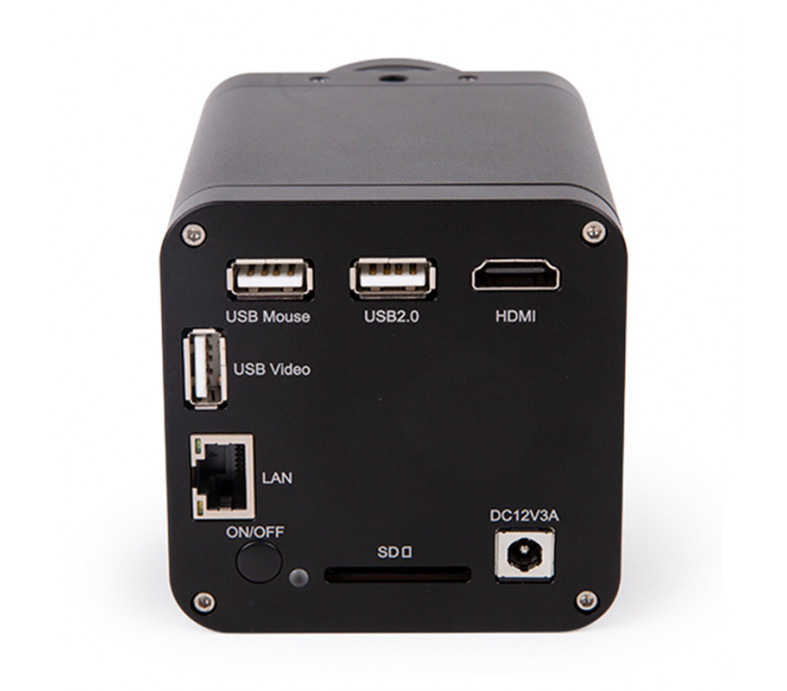

Interface & Button Functions |
||
|
USB Mouse |
USB mouse for XFCAMView control |
|
|
USB2.0 |
Connect USB flash drive to save pictures and videos Connect 5G WLAN module to transfer video wirelessly in real time with ImageView/ ImageLite |
|
|
HDMI |
Comply with HDMI1.4 standard. 4K/1080P format video output and supporting automatic switch between 4K and 1080P format according to the connected monitors |
|
|
USB Video |
Connect PC or other host device to realize video image transmission with ImageView/ ImageLite |
|
|
LAN |
LAN port to connect router and switch to transfer video with ImageView/ ImageLite |
|
|
ON/OFF |
Power on/off switch |
|
|
LED |
Power LED indicator |
|
|
SD |
Comply with SDIO3.0 standard and SD card could be inserted for video and images saving |
|
|
DC12V3A |
DC12V3A power input |
|
XFCAMView Software Functions |
||
|
UI Operation |
With USB mouse to operate on the embedded XFCAMView |
|
|
Image Capture |
8M (3840*2160) JPEG/TIFF image in SD card or USB flash drive |
|
|
Video Record |
Video format：8M(3840*2160) H264/H265 encoded MP4 file Video saving frame rate:30fps |
|
|
Camera Control Panel |
Including Exposure, Gain, White Balance, Sharpness, Denoise, Denoise, Saturation, Gamma, Contrast, Brightness, Power Frequency control |
|
|
Measurement Toolbar |
Including Calibration, Measurement, and measurement parameter Export functions |
|
|
Synthesis Control Toolbar |
Including software Zoom, Flip, Freeze, Crosshair, LED Control, Auto-focus, Comparison, Browser , Setting, Version Check function |
|
|
Auto Focus Control Panel |
Including Zoom, Auto Focus, One Push, Manual Focus, Reset, and other functions |
|
Software ImageView Environment under LAN/WLAN/USB Video Output |
|
|
White Balance |
Auto White Balance |
|
Color Technique |
Ultra-Fine Color Engine |
|
Capture/Control SDK |
Windows/Linux/macOS/Android Multiple Platform SDK(Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc) |
|
Recording System |
Still Picture or Movie |
|
Operating System |
Microsoft® Windows® XP / Vista / 7 / 8 / 8.1 /10(32 & 64 bit)/ View OSx(Mac OS X)/ Lite Linux/ Lite |
|
PC Requirements |
CPU: Equal to Intel Core2 2.8GHz or Higher |
|
Memory: 4GB or More |
|
|
Ethernet Port: RJ45 Ethernet Port |
|
|
Display:19” or Larger |
|
|
CD-ROM |
|
Operating Environment |
||
|
Operating Temperature(in Centidegree) |
-10~ 50 |
|
|
Storage Temperature(in Centidegree) |
-20~ 60 |
|
|
Operating Humidity |
30~80%RH |
|
|
Storage Humidity |
10~60%RH |
|
Dimension of BMM-4K8MPB
