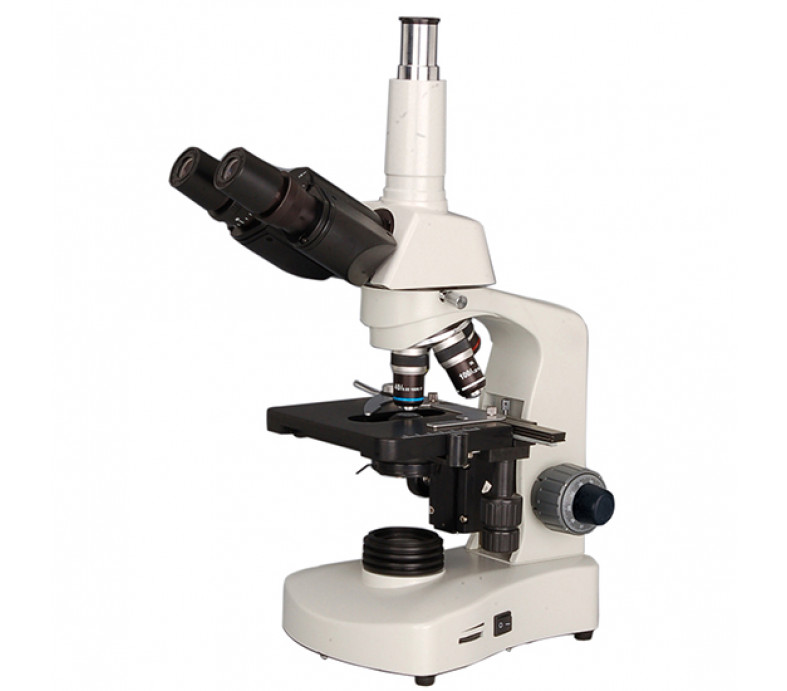

Trinocular Biological Microscope with 8.3MP Camera
2020T_BUC1D-830C
- $1,149.00
-
Magnification:40x-1000x
-
Eyepiece:WF10x
-
Objective:4×, 10×, 40×, 100×(Oil)
-
Illumination:S-LED
-
Stage:132×142mm/ 75×40mm
-
Viewing Head:Trinocular
-
Focusing:Coaxial Coarse
-
8.3MP Camera
- Comfortable operation with updated and ergonomic design
- LED light illumination, save energy and long working life
- Compact and flexible, ideally suited for desktop, laboratory worktable
- Suited for school biological education and medical analyses area
- Widely used in clinics, hospitals, schools, academic labs and scientific research department
The microscope is economic, practical and easy to operate. It has LED illumination, which saves energy, has long working life and also comfortable for observation. These microscopes are widely used in educational, academic, agricultural and study field. Includes a 8MP digital camera which can be plug into the trinocular tube and the image will be displayed on your PC or laptop. Measurement features included with the imaging software.
| Microscope | Specification |
| Viewing Head | Seidentopf Trinocular Head, Inclined at 30°, 360° Rotatable, Interpupilary Distance 55-75mm |
| Eyepiece | WF10×/18mm |
| Objective | Achromatic Objective 4×, 10×, 40×, 100×(Oil) |
| Nosepiece | Backward Quadruple Nosepiece |
| Stage | Double Layer Mechanical Stage 132×142mm/ 75×40mm |
| Focusing | Coaxial Coarse & Fine Adjustment, Fine Division 0.004mm, Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.4mm per Rotation, Moving Range 24mm |
| Condenser | Abbe NA 1.20 with Iris Diaphram and Filter |
| Illumination | 1W S-LED illumination, Brightness Adjustable |
| Immersion oil | 5ml Immersion oil |

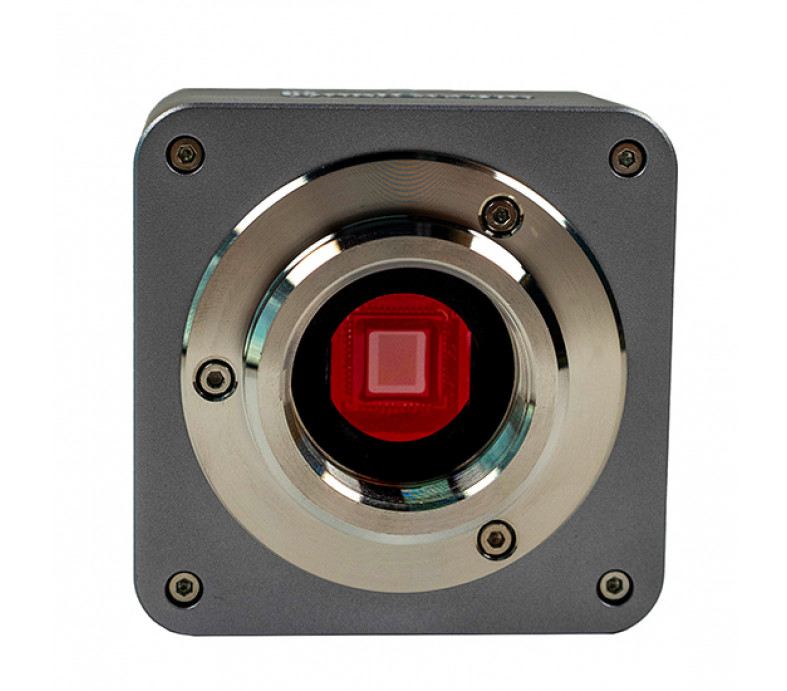

| Camera | Specification |
| Sensor | 8.3M/IMX274(Colour) |
| Sensor Size(mm) | 1/2.5“ (6.22x3.50) |
| Pixel(μm) | 1.62x1.62 |
| FPS | 30@3840x2160 |
| Binning | 1x1 |
| Exposure | 0.1-2000 ms |
| USB Port | USB2.0 High-speed Port |
| Operating System |
Microsoft® Windows® XP / Vista / 7 / 8 /10 (32 & 64 bit) OSx(Mac OS X) Linux |
