ZWO Filter Drawer

ZWO-FD-M42

  • $129.91

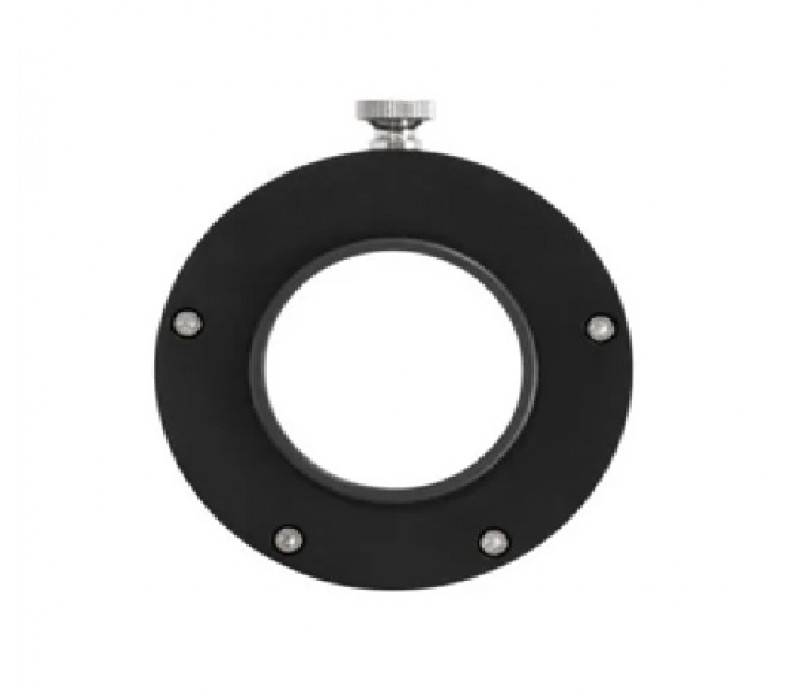

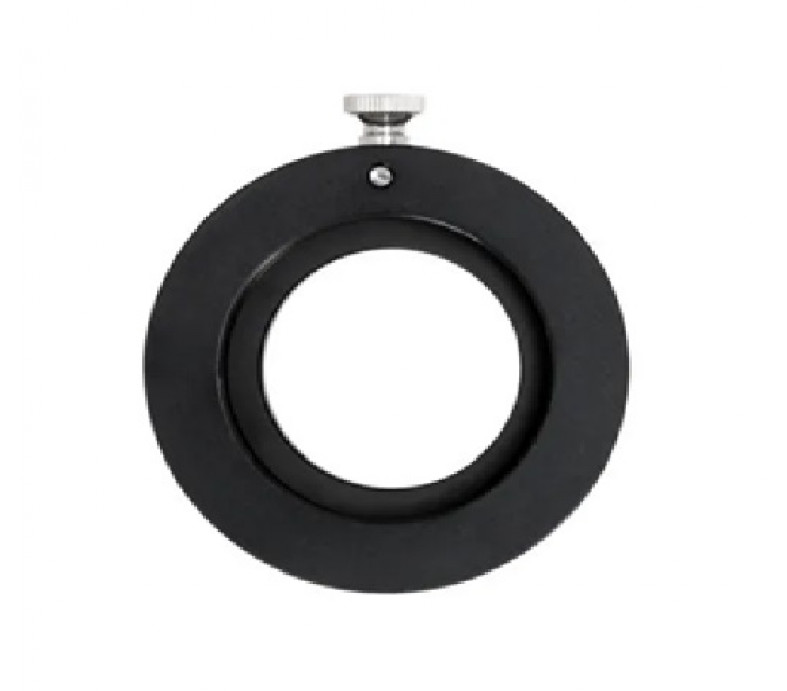

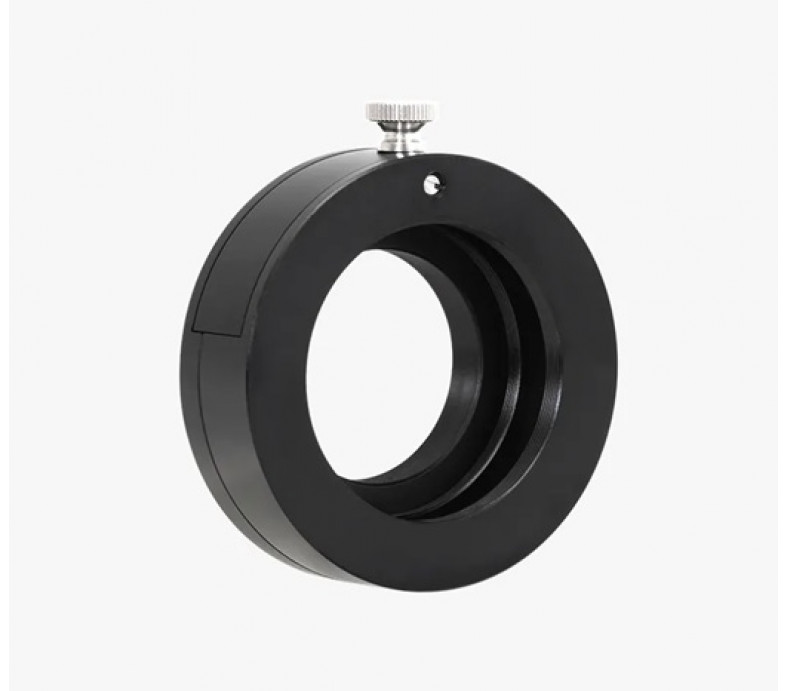

ZWO Filter Drawer for 2" mounted Filter

Product Description



ZWO 2-inch Filter Drawer with 21mm ring design is independently developed by ZWO, which includes M42 * 0.75 male thread (camera side) and M48 * 0.75 female thread (filter end), M48 * 0.75 female  thread (telescope side) as well.

The double strong magnets create stronger adsorption, easier installation and pulling out. zwo filter drawer

There is a lock screw on the side of it. The locking function is helpful on adjusting the tension to eliminate the gap, which is a double insurance for users.

zwo-filter-drawer-locking-fuction

With the ability of double strong magnetic adsorption, it is more convenient and much easier to install or pull out the filter.

3

The filter drawer also comes with the M48-M42 adapter. You can use it with your camera or your telescope.

zwo-filter-drawer-adapter

zwo filter drawer-3

Mechanical Drawing

企业微信截图_15990385975905

66mm(height)*66mm(length)*21mm(thickness)

M42 * 0.75 male(external) thread (camera side)

M48 * 0.75 female(internal) thread (filter end)

M48 * 0.75 female(internal) thread (telescope side)

Suitable for 2-inch astronomical filters
