ZWO Filter Drawer

0

Products

ZWO Filter Drawer

ZWO-FD-M54

  • $129.91

ZWO Filter Drawer for 2" mounted Filter

Enquire for more information or email us specifics at sales@astro.com.sg.

Product Description

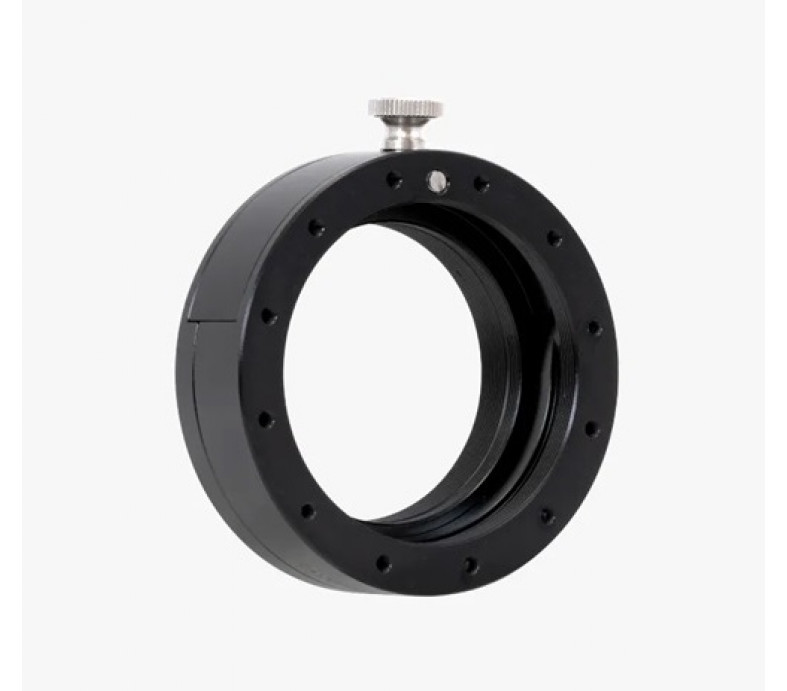

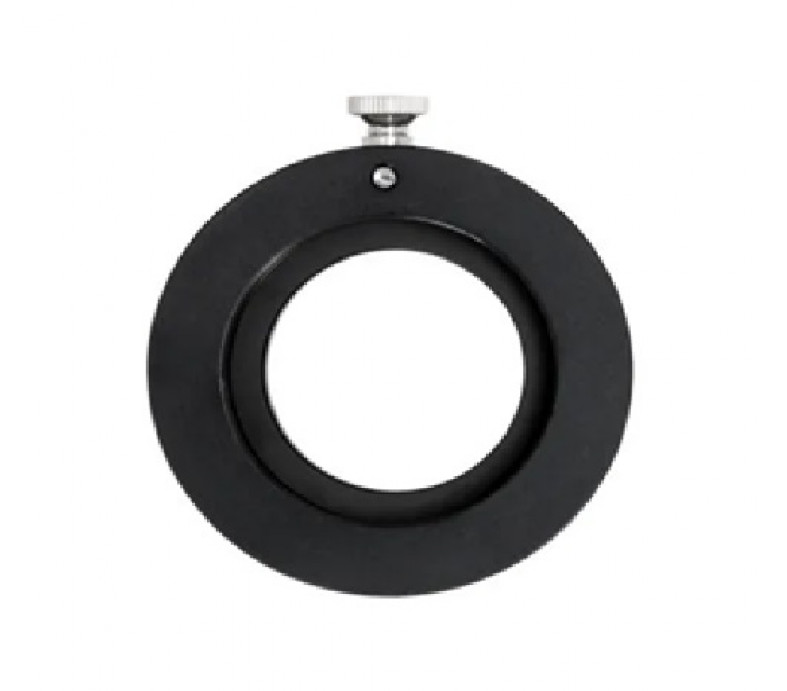

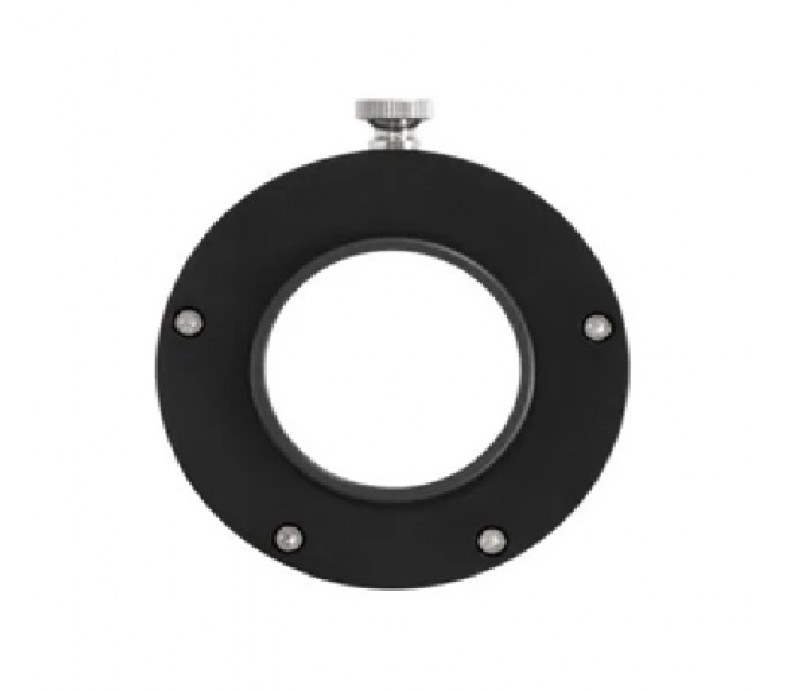

The M54 Filter Drawer with 20mm ring design is independently developed by ZWO and specifically made to match with the full-frame cooled camera ZWO ASI6200 and ASI2400.

The double strong magnets create stronger adsorption, easier installation and pulling out.

Screw-M54 filter drawer-ZWO

The M48*0.75 female thread can be used with the 2inch filters.
The M54*0.75 female thread can be used to connect with the telescope.
And the M54*0.75 male thread can be used to connect with the ASI6200 camera.

Strong-agnet-M54-filter-drawer-ZWO1-1

With the ability of double strong magnetic adsorption, it is more convenient and much easier to install or pull out the filter.

Lock screw-M54 filter drawer-ZWO

There is a lock screw on the side of the M54 filter Drawer. The locking function is helpful on adjusting the tension to eliminate the gap, which is a double insurance for users.

FD-M54

There also is a M54-M48-2 adapter coming with the M54 Filter Drawer so that you can use it with your camera or your telescope.

Connection method

FD-M54-1

Mechanical drawing

Mechanical drawing

70mm(height)*70mm(length)*20mm(thickness)
M54*0.75 male(external) thread (camera side)
M48*0.75 female(internal) thread (filter end)
M54*0.75 female(internal) thread (telescope side)
Suitable for 2-inch astronomical filters

The best solution of 55mm back focus length

6200-55mm-backfocus-solution-3 (2)

Note:This solution can only reach 56mm back focus length. If you want 55mm back focus length. Also the M48-M42 adapter will block the camera sensor a little bit. So we recommend you use 2”EFW with M68 OAG:

Click here for more connection methods of ASI6200 to get 55mm back focus length:

https://astronomy-imaging-camera.com/tutorials/5-connection-methods-to-get-55mm-back-focus-length.html



What’s in the box?

what's in the box-M54 filter drawer-ZWO

ZWO M54 filter drawer *1
M54-M48F-2mm adapter *1
